BikeCAD Feature Request

I'd love to see an option to add CS dents for crank, chainring + tire clearance.

This isn't a feature for the artisan builder so much as it is something I'd like to have if I'm sending a drawing off to a frame MFG overseas.

If I'm an idiot and there is this feature, can you link me to it?

Thanks

Brent
Profile picture for user Brent
www.bikecad.ca
Ottawa, ON Canada

Brent

8 years 5 months ago

Permalink

Chainstay dimple

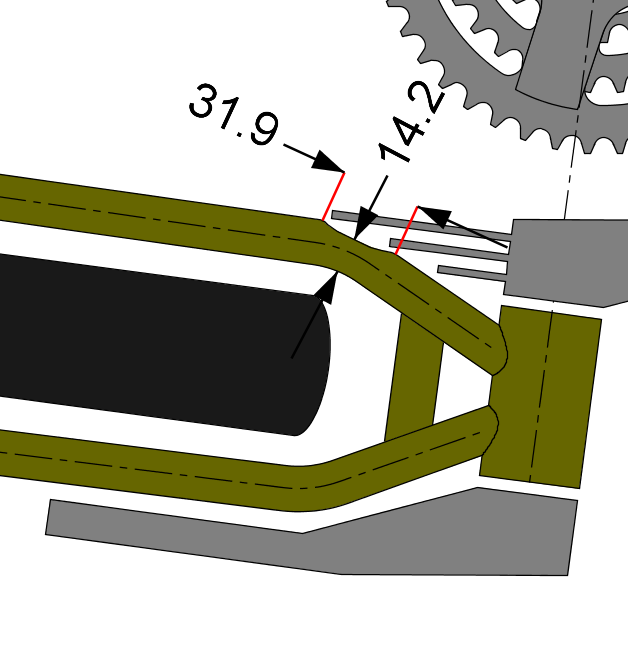

This is not currently an option. However, you could still accomplish this using the Freehand sketching tool. Below is an example of a chainstay dimple drawn in using the freehand sketching tool. I threw in a few extra dimensions as well with the user dimensions option.
