Pinarello Dogma X (Model year: 2026)
Download BCAD file / Get embed code
/ More info: https://pinarello.com/usa/en/bikes/road/endurance/dogma-x/dogma-x-dura-ace-di2#…

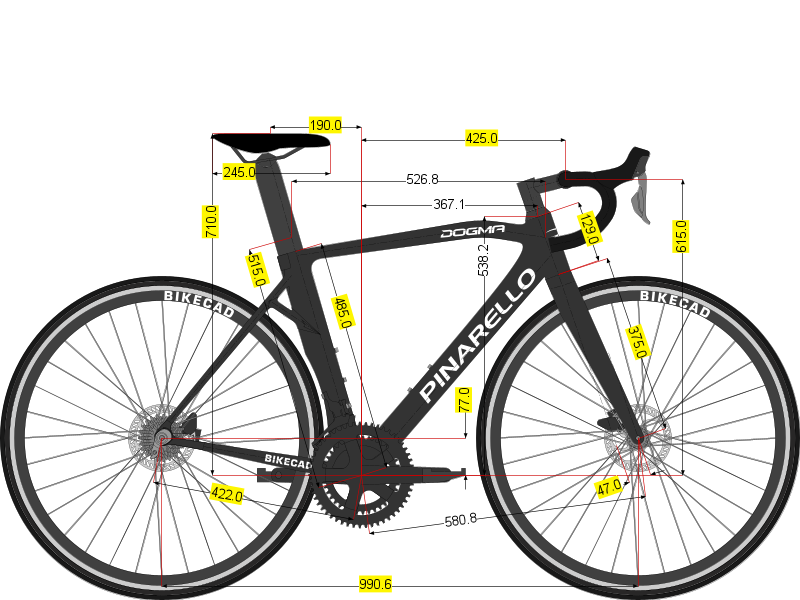

It was difficult to reproduce the geometry of the Pinarello Dogma X. The geometry chart gives the Seat tube length, Wheelbase, Rear center, BB drop, Seat angle, Head angle, Head tube length, Fork length and Rake. Once all these dimensions are input, other dimensions like Stack and Reach should fall into place, but they do not agree with the published specs. Pinarello's diagram doesn't show the stack being measured to the top of the head tube, but rather to some ambiguous point on the stem. Knowing, I could not get all the dimensions to agree, I chose to ignore the Stack and Reach as they don't seem to be drawn in the conventional way.
| Manufacturing: Production Size: 515mm Reach: 367mm Started from: BikeCAD Pro | Primary material: Carbon Style: Road Stack: 538mm BikeCAD version: 23.30 |
