Bolt Thru

There is a 'Thru axle' option on front forks, is it possible to add this as an option on rear dropouts please?

Thru axle rear dropout

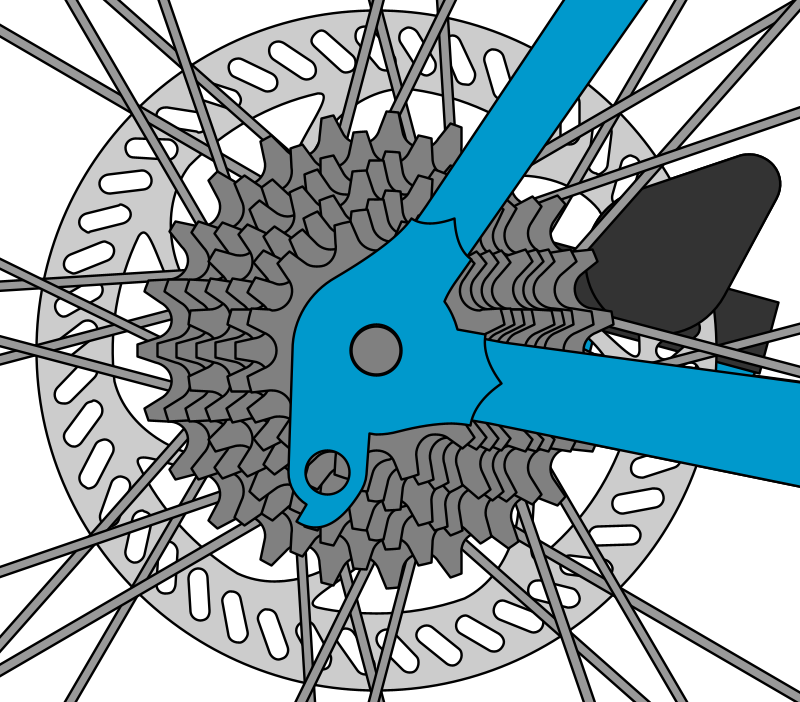

I've just added a checkbox in the rear dropout dialog box to enable thru axles. This option will be available in the next update. There is already a similar checkbox in the fork dialog box for thru axles. In the meantime, you can already display several thru axle rear dropouts available as static drawings. This is described at: bikecad.ca/dropouts_from_static_drawings.

Perfect thank you Brent. What

Perfect thank you Brent. What drop out is that please?

Thru axle rear dropouts

Although there are lots of thru axle dropouts available as static drawings in BikeCAD, the above example is not one of them. The above example is a parametrically designed socket style dropout with the thru axle checkbox selected. This will be available as an option in the next update of BikeCAD.

Buenas noches saludos

Buenas noches saludos megustaria saber si alguien me puede por favor explicar como se usa este sofware quisiera aprender a hacer una bicicleta me estoy iniciando en esta pasion de las bicicleta,de antemano muchas gracias



Using BikeCAD and BikeCAD Pro

Hay muchos tutoriales en video que explican el uso de BikeCAD y BikeCAD Pro en la guía del usuario de BikeCAD. Aquí hay un enlace a la guía del usuario traducida al español.

muchas gracias brent

muchas gracias brent

hola brent buenas tardes como

hola brent buenas tardes como sabes te comente en el correo pasado que soy nuevo en este tema quisiera sabersi por favor me podrias ayudar con el tema de la plantilla de ensanble para armar el cuadro de la bicicleta ya cuando este terminado los cortes de los tubos, una plantilla para el ensamblaje ,no se si habra algun tutorial o con tus conocimientos me puedas ayudar o habra algun sitio donde pueda buscar imformacion ,muchas gracias

Help in Spanish

Comuníquese conmigo por correo electrónico para que pueda responder cualquier pregunta específica que tenga.
