Hi *,

I am kind of struggeling to understanding the wheel design dialog box with all dimensions. I am having a hard time to setup a 650 b wheel with 2.4 max. width. From my understanding the width of a tyre is represented by the dimension "w". is my assumption korrekt :) ?

Basically what I am looking for is a discription of the dialog - is there one around? I did not find one or was to blind to find it. Thanks for giving me directions!

Kind regards & cheers,

Alex

Hi, i am using a columbus zona bent down tube on a 29er build, with BikeCAD 9.16 (i cant uodate to the newest version because we only have 9.16 at school, i attend Adams Grammar)

I am trying to work out how far in i need to place my template at the head tube end of the down tube, because if i just cut it off the straight line length the angle will not be correct. It is hard to use the A measurement for this because it is measured to the theoretical centre of the curve which is difficult to pinpoint in real life.

Thanks

Ben Turner

Adams Grammar School

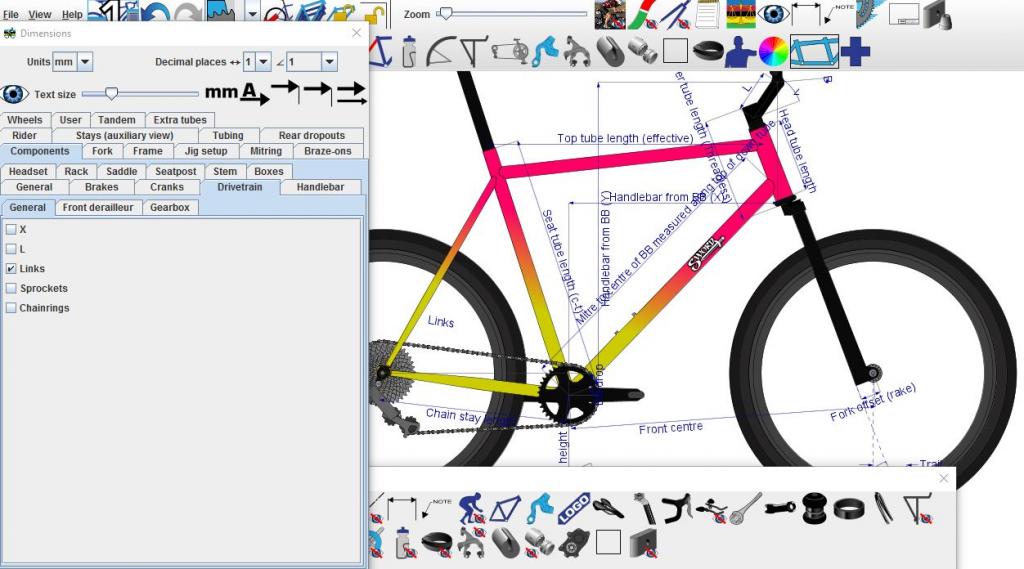

Don't know what I did but I managed to replace the numerical values of the dimensions with their names.

Reloading it reverted to normal, but a diagram with named dimensions on might be handy in the future how would I repeat this (on purpose).

Tim

Hey there,

I have been using BikeCAD Pro for some months now and I love this software. There is just one thing for that I really need your help:

I developed a special frame and I want to check the riding positions of several riders (with different measures) on the same frame (unisize). Unfortunately the preview of the rider does not change after changing the rider’s measures. What can I do?

Thank you very much for your help.

Cheers

Johannes

Good Evening, I am having a very difficult time getting a 40 mm tire to fit in a frame with clearance (physically and in the software) while using a 175mm crank arm with 36 small ring and a 46 large ring. 425 mm long chain stays. Do you guys have any advice?

Thank you for your time

Please forgive me if this issue has been addressed in another forum already.

I'd like tp have individual print outs of both seat and chain stays. Even though I've centered each on the page in BikeCAD they show up in pdf as low or high and to the left..

how can i change this?

Thanks

I am trying to duplicate a Specialized Shiv TT bike frame in BikeCAD Pro but have encountered a few problems in trying to get the frame geometry it to look similar.

Hi All, I am brand new to BikeCAD Pro (and BikeCAD). I've been trying to find the menu where I can change the bike logo/text but can't find it nor could I find anything on it in the help menu. If someone can direct me to the proper menu that would be great. Thanks

Patrick

Hey,

Is there a measurement offered between the side of a tire and the CS or SS? I'm probably blind but I can't seem to find it.

Thanks!

the seat tube usually terminates at the bb. but i need the bb. to be 130mm forward of that point
