Brent,

Attempting to print some mitre templates, I have found the bottom of the page's image cut off.

I attempted to attach the file, but pdfs arn't supported, so I've attached a screenshot of the issue

It isn't much, but my version of Adobe Reader XI (11.0.09) is telling me the exported page size is 8.3x11.7", rather than A4's standard 8.27x11.69".

Chris

I've been avoiding 11.5 for the past several months because I can't seem to find the Configuration folder to update my components and templates. I'm using a Mac and downloaded the code signed version in my downloads area. Prior to this version, I had a folder in my "Applications" folder specific to the version of BikeCAD and a sub folder called "Configuration". With 11.5 I can't find that folder. As I'm building a few bikes concurrently, I've had separate instances of BikeCAD running (in different versions) and having to toggle my usual cut information has become somewhat annoying.

Is it possible to just 'paint' the inside of the stays/fork?

Hi Brent,

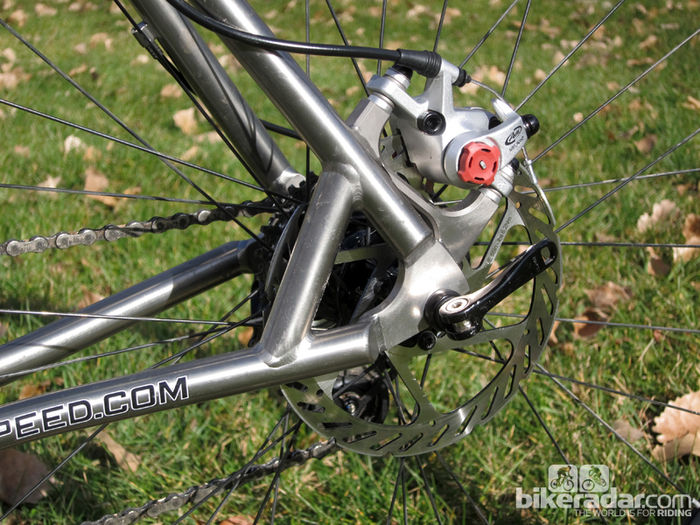

I'm wondering whether BikeCAD Pro Version 11.5 lets me specify a reinforcement strut like the one shown in the picture.

If it does please explain how since I could not find it.

If not please include it into the next version ;-)

Thanks,

Horst

I am having a hard time figuring out how to adjust the default location of a front caliper brake in BCAD. The default location seems to be the lower portion of the headtube. It would be nice to have it mounted to the fork crown.

Does anyone have a suggestion?

Thanks,

Jess Couch

When I view the drawing I see an extra set of tubes and tires plus feet that are displayed horizontally. It would be nice if I could turn them off.

thanks Mike Frye A.K.A. Frye Bikes

I normally run Pro on my Mac but wondering if it's possible to run on a Chromebook?

Cheers

Steven

I was recently asked to demonstrate how one might document a design in BikeCAD using specs from Retül. This is a common question, so I thought I would post my response here on the forum.

The sample Retül session was for a 51mm Specialized Dolce. Before looking too closely at the Retül dimensions supplied, I figured I would model a Specialized Dolce based on the frame geometry posted on the Specialized website.

Below is the BikeCAD model I developed. As you can see, the BikeCAD dimensions match the specs from the Specialized website which I've pasted alongside.

Hi, im new in this world, you have a great program.

A question, when i load a recent cad file, the program runs too slow. Cant do anything, my computer its too fast, a nvidia graphic and an i7 processor.

Any solutions?

Sorry for my english. Thanks and greetings.

Is there any way to model a tapered head tube in BikeCAD Pro? I can see how to create a "stepped" variable diameter head tube but is not obvious to me how to model a head tube that has a constant taper from the top to bottom? An example of what I am refering is the Paragon Machine Works HT2055.

Thanks!

Locky
