How do I set up the heatube for braze on integrated cups.

Like below, I know I can just use a standard measurements for overall length, but i was wondering if I could set it up to show the hidden piece of headtube inside the cups, and have the length tube showing and total length including part of tube inside?

Thanks in advance.

The .bcad file I am currently working on has mysteriously dissapeared. I saved the file every time before shutting down the program. The file still exists in the folder it is saved in, however, it won't open and the info box says there is 0 kb of data. Frustrated, as I am in the middle of the frame build and now don't have access to the design. Luckily I have the csv file of build specs, but I'm going to have to re-model my design if I want any visual reference. Not sure what happened, maybe someone has seen this before? I am running the linux version on a mac, 10.6.8.

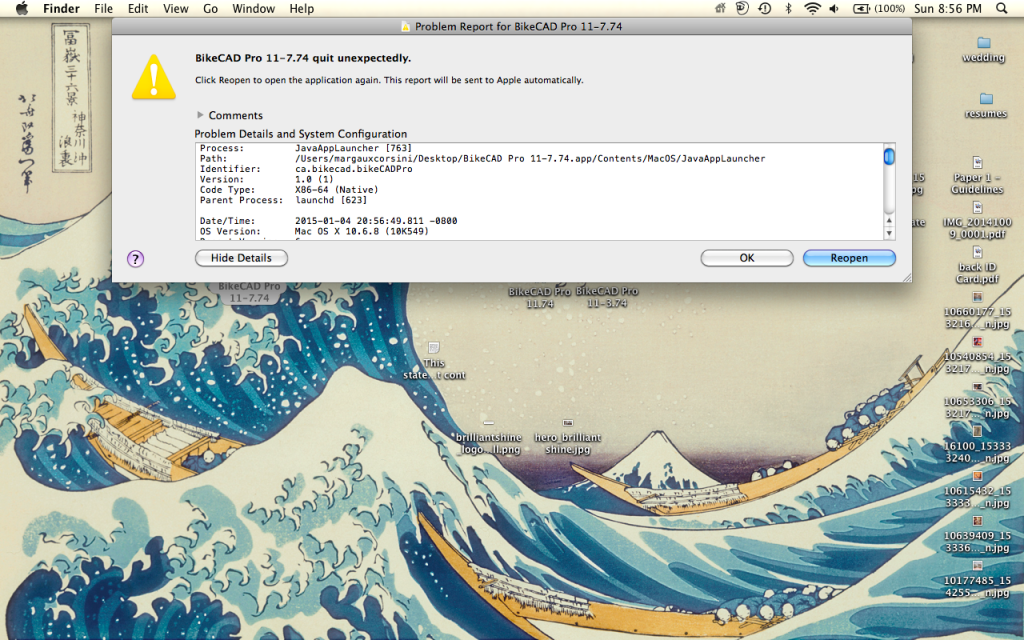

hi, i can t instal BikeCAD pro, here what i have... could you help me?

Hi Brent,

Thanks for the answer and that I am in this cummunity. I met with the program and I am curious from the full version:))Before to buy it I will training with this online version which you are provided and to improve my skills . Can I use different materials from pipe ? Like a chain for example.

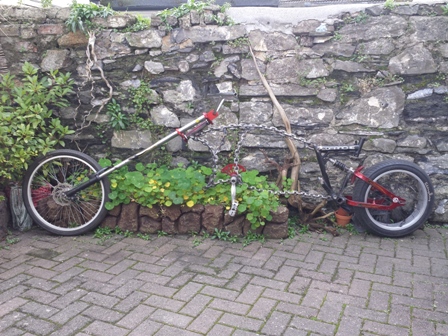

Below i want show you my project over I work and can I create with this program, is it possible for future projects? Thanks,

Regards,

Yavor

Is there a way to show the "effective" seat tube angle?

When you have a curved seat tube, the seat tube angle that is shown is the angle of the straight part above the curve.

Currently, as far as I know, the only way to show what the effective ST angle is is by adding an angle in manualy.

I understand that this "effective" ST angle will change with things like saddle height, however for visualization it would be great.

The setup windows (for example, "Primary dimensions") always float above the bicycle design window. This window behavior makes it very difficult change dimensions and then visualize them in the design. Is there any way to change to standard OS X window behavior?

-jamie

Métier Vélo

How do I add rider info in title block?

Just found this nifty site and its free. To print full size layouts of your bike:

1. Export bike as PDF, no scalling, remember where you save it.

2. Go to the link below upload your pdf, after putting in your paper size.

3. It will give you a link to view your new tiled PDF

4. Right click and choose "save as", remember where you save it.

5. Open your new file and print it, make sure you choose no scalling.

6. It does come with a watermark, but your demensions will be VERY accurate.

This will work with any printer.

Brent,

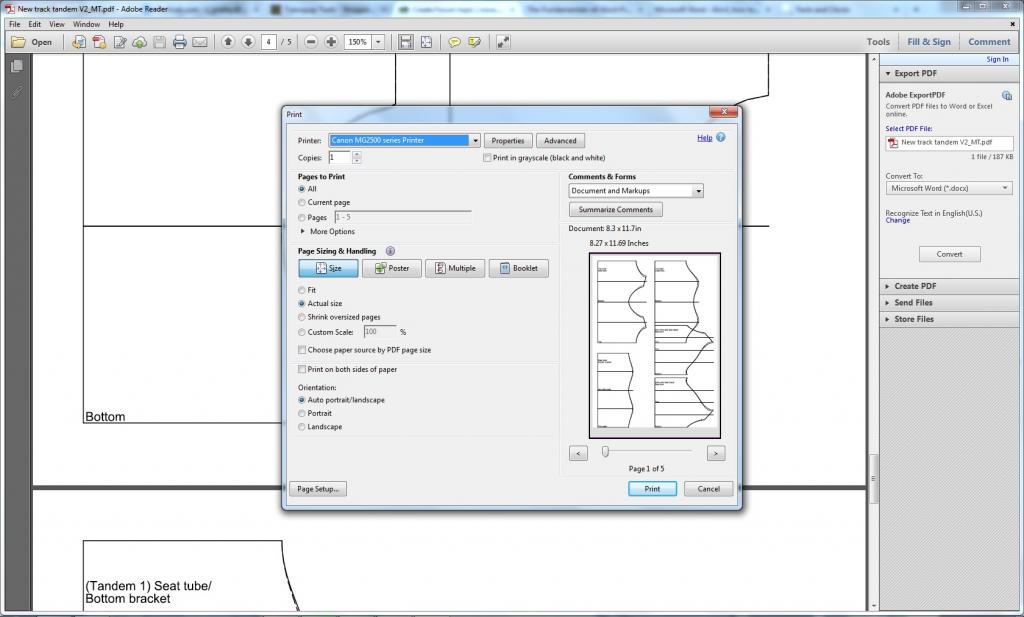

Attempting to print some mitre templates, I have found the bottom of the page's image cut off.

I attempted to attach the file, but pdfs arn't supported, so I've attached a screenshot of the issue

It isn't much, but my version of Adobe Reader XI (11.0.09) is telling me the exported page size is 8.3x11.7", rather than A4's standard 8.27x11.69".
